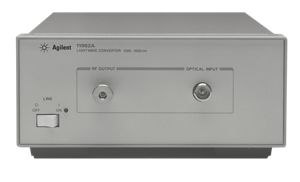

Agilent / HP / Keysight 11982A
11982A Amplified Lightwave Converter
Description
This unit has a wide-bandwidth, sensitive O/E converter for characterizing lightwave systems and components, it combines a PIN photodetector with a low noise DC coupled preamplifier to create a general purpose front end. It covers wavelengths from 1200 to 1600 nm and bandwidths from DC to 15GHz. With 300 V/W conversion gain and 0.05 percent input optical reflections, it significantly improves the sensitivity of the measurement system. The converter comes with a calibration chart of instrument specific data for making corrected frequency response measurements.
Key Points
Low pulse aberrations
High sensitivity
Time- and frequency-domain measurements
Specifications
Wavelength: 1200 nm to 1600 nm
Bandwidth: dc to 15 GHz
Full Width Half Maximum:29.4 ps
Input Return Loss: > 23 dB
Maximum Operating Optical Input Power:1.5 mW (+1.76 dBm)
Output Voltage Range: > 700 mV
Output Offset Voltage: < 1 mV
Conversion Gain:300 V/W, nominal
