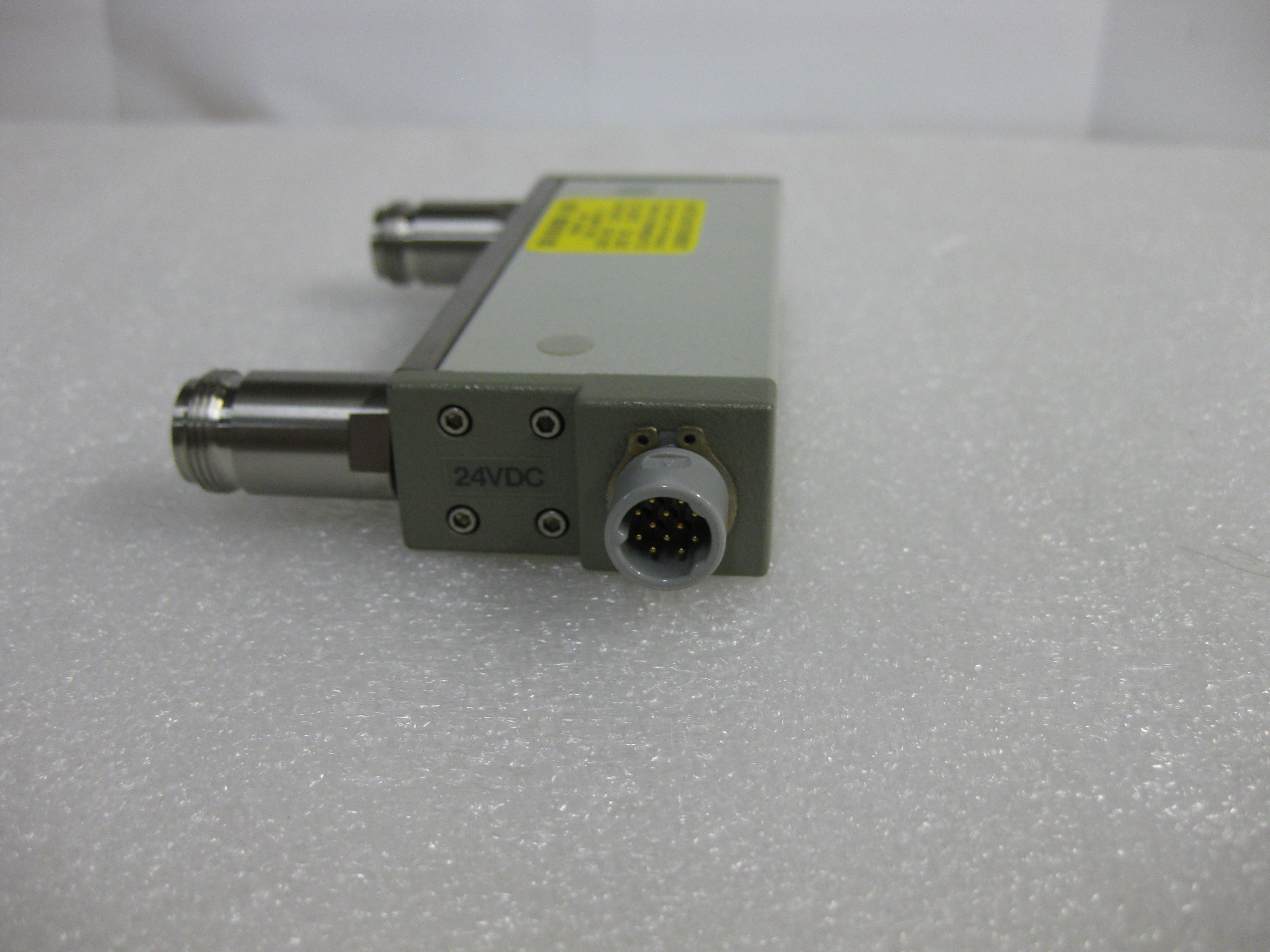

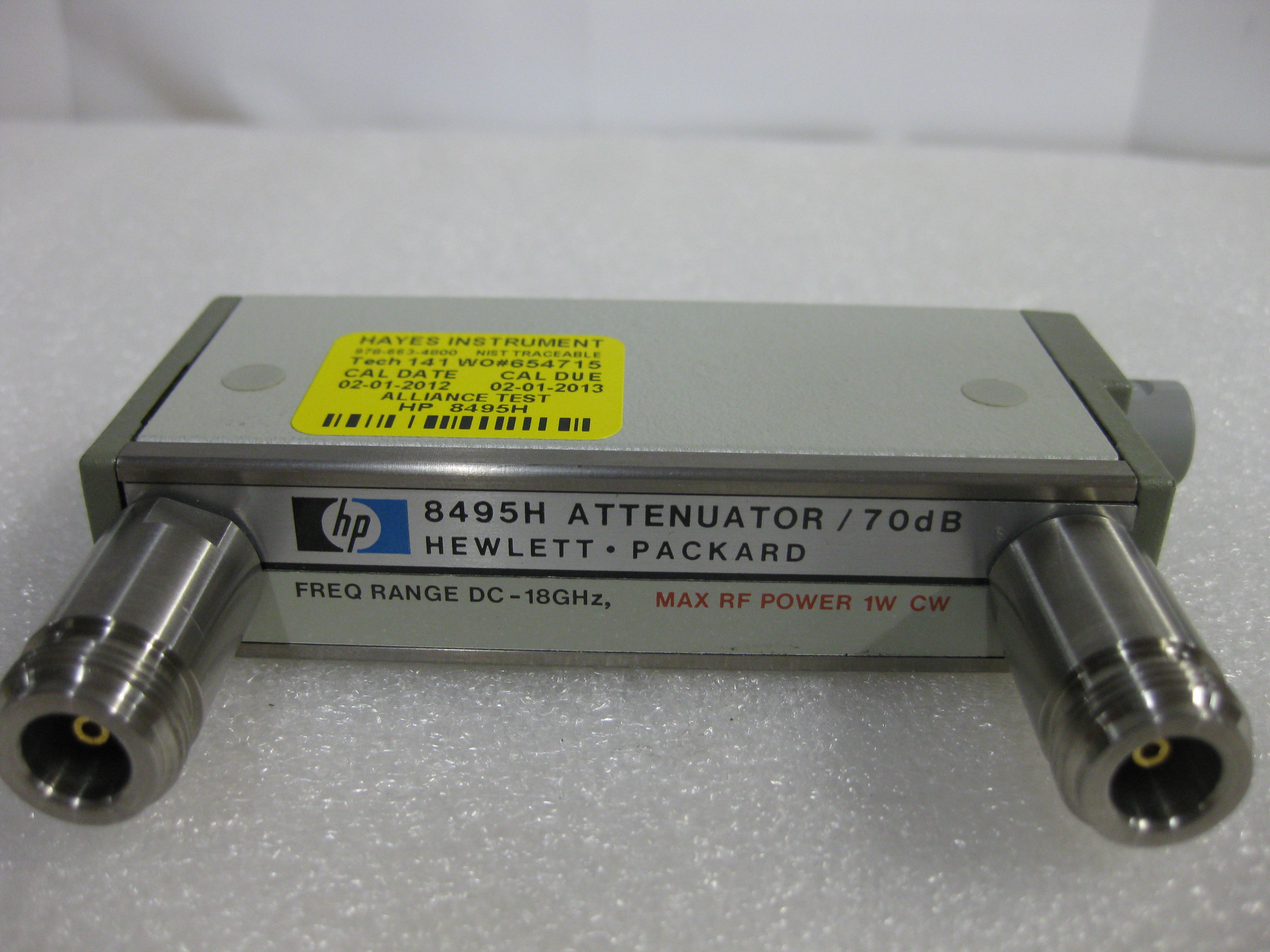

Agilent / HP 8495H
Programmable Step Attenuator, DC to 18 GHz, 0 to 70 dB, 10 dB steps
Description
This Programmable step attenuator provides repeatability and reliability. Attenuation is provided in 10dB steps from 0 to 70dB. Precision gold plated leaf springs ensure long life and very high attenuator repeatability. To improve measurement accuracy, NIST traceable data is available as Option 890. A maximum switching time of 20ms speeds automatic testing and custom step attenuator/switch combinations are possible.
Key Points
Superior RF Performance
Repeatability and Life Span
Power Handling
Specifications
Frequency Range: dc to 18GHz
Insertion loss at 0dB: 0.4dB + 0.07dB/GHz
Maximum SWR: 1.35 to 8GHz, 1.5 to 12.4GHz, 1.7 to 18GHz
Repeatability life: 0.03dB maximum
Maximum RF input power: 1W (average), 100W (peak)
