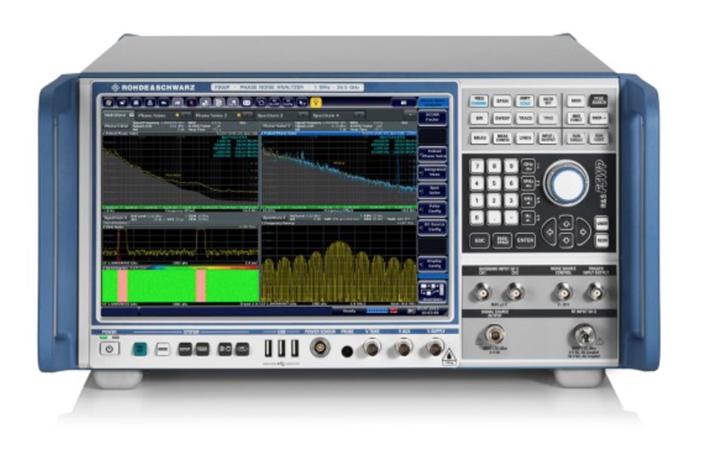

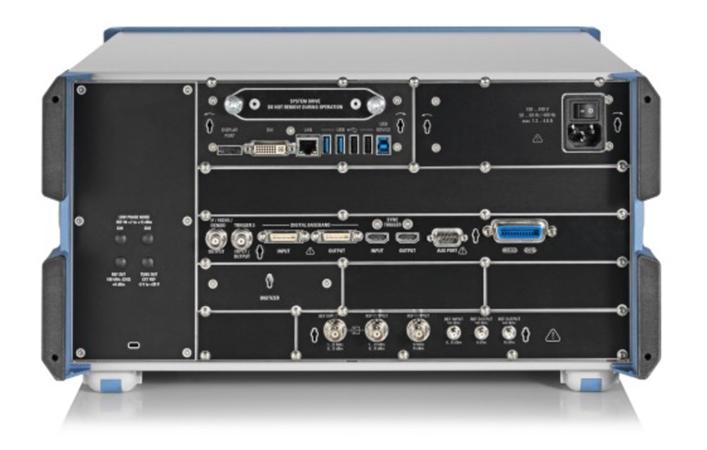

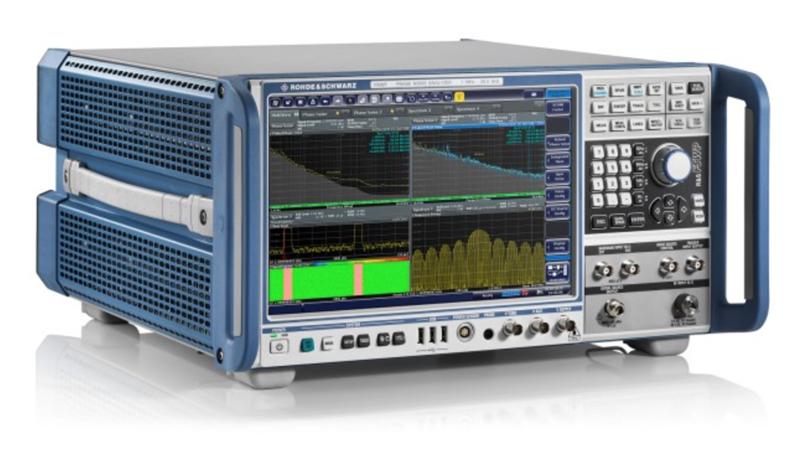

Rohde & Schwarz FSWP50

Rohde and Schwarz FSWP50

Please help us customize your browsing experience, by selecting one the below.

Description

  • Frequency range from 1 MHz to 8/26.5/50 GHz
  • High sensitivity for phase noise measurements thanks to cross-correlation and extremely low-noise internal reference sources
  • typ. –172 dBc (1 Hz) at 1 GHz carrier frequency and 10 kHz offset
  • typ. –153 dBc (1 Hz) at 10 GHz carrier frequency and 10 kHz offset
  • Simultaneous measurement of amplitude noise and phase noise
  • Measurement of phase noise on pulsed sources at the push of a button
  • Internal source for measuring additive phase noise, including on pulsed signals
  • Signal and spectrum analyzer and phase noise analyzer in a single box
  • High-end signal and spectrum analyzer, 10[nbsp]]Hz to 8/26.5/50 GHz
  • Wide dynamic range thanks to low displayed average noise level (DANL) of 156 dBm (1 Hz) (without noise cancellation) and high TOI of typ. 25 dBm
  • 80 MHz signal analysis bandwidth
  • Total measurement uncertainty: < 0.2 dB up to 3.6 GHz,< 0.3 dB up to 8 GHz
  • Touchscreen operation
  • Large 12.1" display for simultaneous viewing of multiple measurement windows
  • Various measurement applications can be run and displayed in parallel

Specifications

1) Measuring phase and amplitude noise with high sensitivity
2) Phase noise measurements on pulsed sources at the push of a button
3) Internal source for measuring additive phase noise, also on pulsed signals
